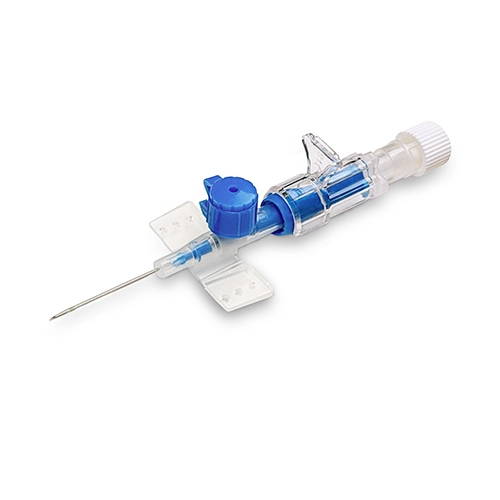

QuickSafe Safety IV Cannula with Catheter and Injection Valve
QuickSafe Safety IV Cannula with Catheter and Injection Valve
Not Available for Sale in U.S.
product downloads
FEATURES & BENEFITS
Triple-Facet, Back Cut Beveled Needle Designed to provide ease of insertion with increased patient comfort at the insertion site.
Gently Tapered Catheter Tip Provides smooth transition from needle to catheter during insertion.
Suture Wings Helps increase stability of IV Catheter.
Injection PortÂ
Flashback Chamber Allows for clear visual confirmation of successful venipuncture.
Passive Fail-Safe Safety Clip Automatically activated as the catheter is advanced into the vein.
Thumb Stopper Helps with one-handed insertion techniques.
Removable Flash-plug
specifications
- PTFE or PUR catheter material
- Disposable
- Sterilized with ethylene oxide
- Not made with natural rubber latex
- Not made with DEHP
- Non-pyrogenic
- Ground stainless-steel needle
- Passive style safety mechanism
- Radiopaque
- ISO compliant color coding
- Needlestick Safety and Prevention Act (NSPA) of 2000 compliant
- Available Standard (without Wings or Port), With Wings, or with Wings and Port
Act (NSPA) of 2000 compliant
item numbers
QuickSafe IV Cannula with Injection Valve
 |
KFORRT0AW | QuickSafe IV Cannula with Catheter & Injection Valve, 14G |
 |
KFRRRT0AW | QuickSafe IV Cannula with Catheter & Injection Valve, 16G |
 |
KFGRRT0AW | QuickSafe IV Cannula with Catheter & Injection Valve, 18G |
 |
KFPRRT0AW | QuickSafe IV Cannula with Catheter & Injection Valve, 20G |
 |
KFBRRT0AW | QuickSafe IV Cannula with Catheter & Injection Valve, 22G |
 |
KFYRRT0AW | QuickSafe IV Cannula with Catheter & Injection Valve, 24G |
QuickSafe IV Cannula with Injection Port and Wings
|
MSI-86614 | QuickSafe IV Cannula with Injection Port & Wings, 14G | 45 mm | 1.77″ |
|
MSI-86616 | QuickSafe IV Cannula with Injection Port & Wings, 16G | 45 mm | 1.77″ |
|
MSI-86618 | QuickSafe IV Cannula with Injection Port & Wings, 18G | 45 mm | 1.25″ |
|
MSI-86620 | QuickSafe IV Cannula with Injection Port & Wings, 20G | 33 mm | 1.25″ |
|
MSI-86622 | QuickSafe IV Cannula with Injection Port & Wings, 22G | 25 mm | 1″ |
|
MSI-866222 | QuickSafe IV Cannula with Injection Port & Wings, 22G | 25 mm | 2.5″ |
|
MSI-86624 | QuickSafe IV Cannula with Injection Port & Wings, 24G | 19 mm | 0.75″ |
Not for sale in US, pending FDA approval
